Twin Screw Pumps - Korkmaz - KTS Series

The KORKAMAZ KTS Series axial twin-screw pumps deliver excellent performance in handling high-viscosity products and fluids containing solid particles. The KTS Series twin-screw pumps (bi-axial pum..read the entire description

Description

The KORKAMAZ KTS Series axial twin-screw pumps deliver excellent performance in handling high-viscosity products and fluids containing solid particles.

The KTS Series twin-screw pumps (bi-axial pumps) represent state-of-the-art equipment developed by Korkmaz Industry through an innovative engineering approach, offering ideal solutions for industrial processes that require precise fluid transfer. These pumps ensure optimal performance across a wide range of fluids, while their flexible structure perfectly adapts to process requirements. High efficiency, hygiene, and durability are the key characteristics of the KTS Series.

These pumps transfer solid particles without affecting the integrity of the product and provide superior performance when handling viscous products and fluids containing particulates. They are commonly used for the gentle transfer of fluids such as:

  • fruit yogurts
  • cream soups
  • fruit pastes
  • jams and marmalades
  • fruit juices and nectars
  • alcoholic and non-alcoholic cream-type beverages
  • ready-meal food preparations
  • chemical and laboratory products
  • pharmaceutical products and medicines
  • cosmetic creams and ointments
  • dietary supplements

High-Performance Liquid Transfer

High efficiency for a wide range of fluids, from low-viscosity liquids to dense, high-viscosity products.

Hygienic Design and Premium Stainless Steel 316 Quality

All surfaces of the KTS Series that come into contact with the liquid are manufactured from AISI 316 stainless steel, meeting the hygienic processing requirements of the food, beverage, pharmaceutical, and cosmetic industries.
Additionally, the pumps are fully compatible with CIP (Cleaning-in-Place) and SIP (Sterilization-in-Place) systems, accelerating sanitation processes.

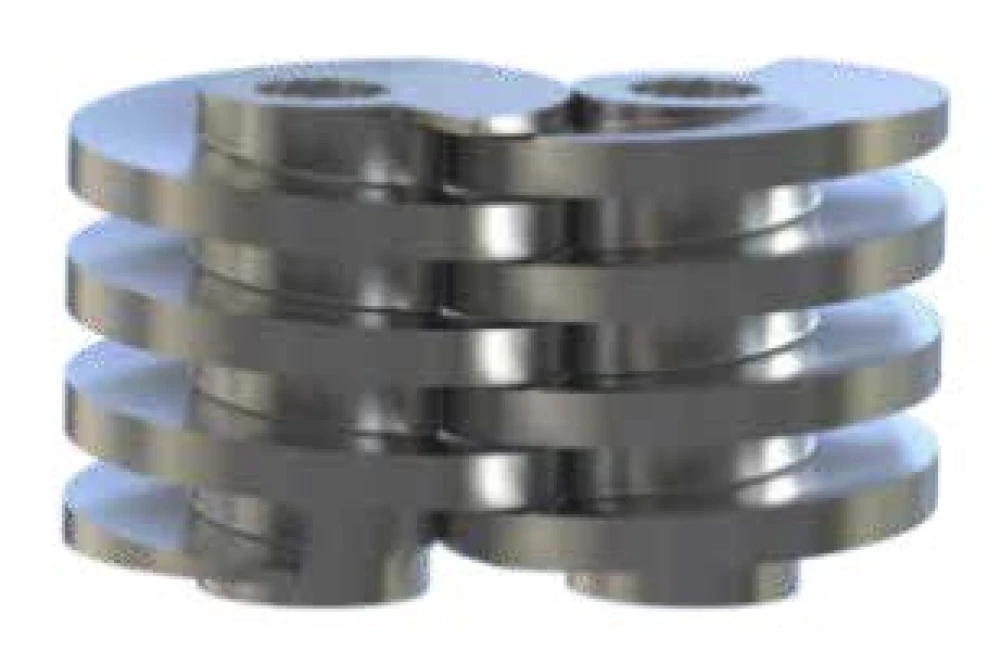

Precise Flow Control Through Twin-Screw Technology

The twin-screw structure of the KTS Series enables the transfer of liquids with varying viscosities, optimized according to pressure and capacity requirements. This technology delivers high performance even at low pressures and high capacities. The screw configuration can be adjusted depending on the viscosity and flow rate of the liquid, ensuring superior performance in all applications requiring precision and stability in fluid transfer.

Bidirectional Pumping

The ability to change the pumping direction increases process flexibility and meets the needs of various applications.

Wide Temperature Range

Operating temperature range from -10°C to +150°C, with the capability to operate under high-pressure conditions.
